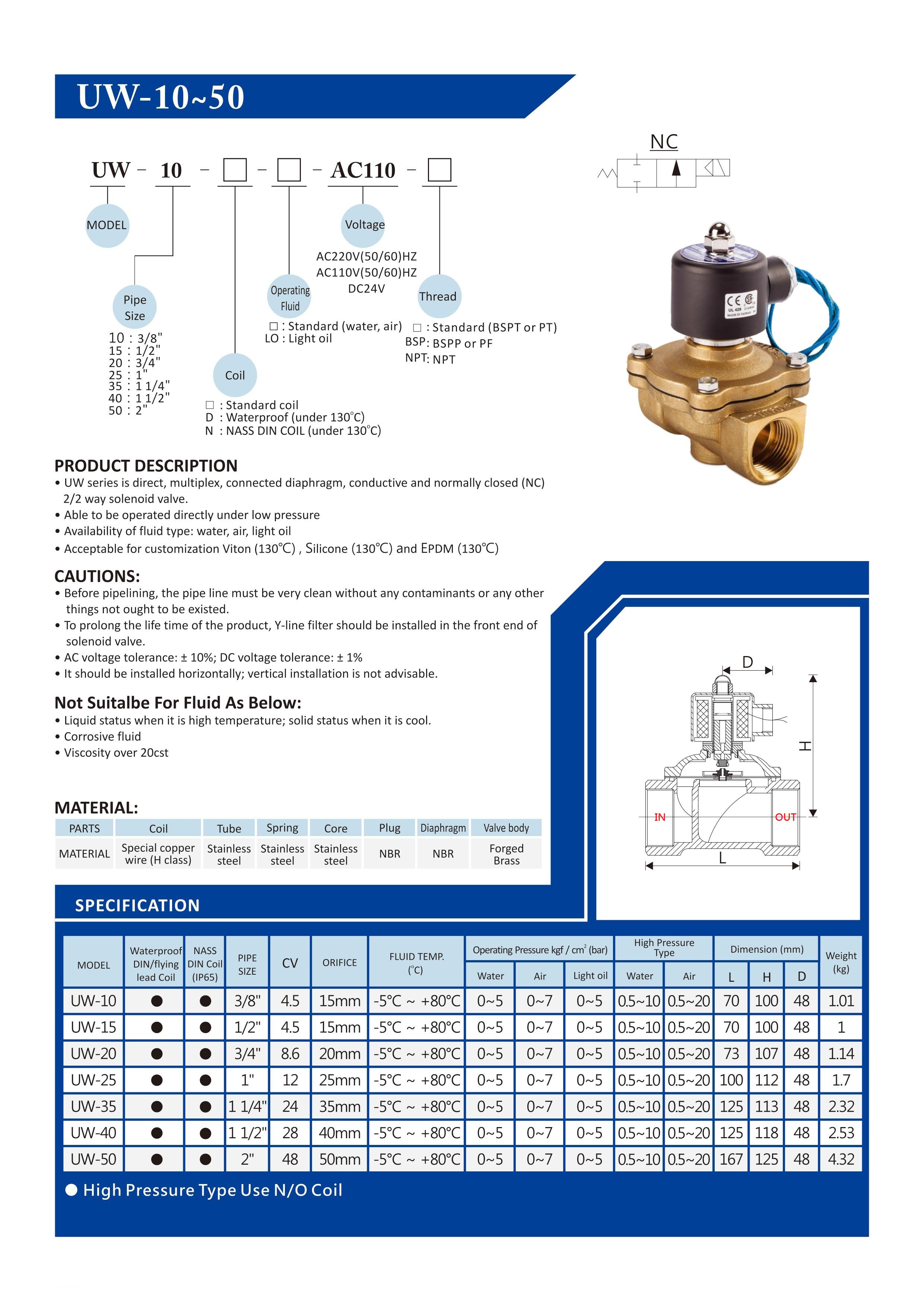

UNID UW-40 2W Water Solenoid Valves G1 1/2" 2/2Way AC220V Normally Closed Conductive Brass
PRODUCT DESCRIPTION
1. UW series is direct, multiplex, connected diaphragm, conductive and normally closed (NC)
2/2 way solenoid valve.
2. Able to be operated directly under low pressure
3. Availability of fluid type: water, air, light oil
4. Acceptable for customization Viton (130°C) , Silicone (130°C) and EPDM (130°C)
CAUTIONS:
1. Before pipelining, the pipe line must be very clean without any contaminants or any other
things not ought to be existed.
2. To prolong the life time of the product, Y-line filter should be installed in the front end of
solenoid valve.
3. AC voltage tolerance:土10%; DC voltage tolerance:土1%
4. It should be installed horizontally; vertical installation is not advisable.
| MODEL | Waterproof DIN/flying lead Coil | NASS DIN Coil (IP65) | PIPE SIZE | CV | ORIFICE | FLUID TEMP | Operating Pressure kgf / cm (bar) | High Pressure Type | Dimension (mm) | Weight (kg) |
| Water | Air | Light oil | Water | Air | L | H | D |
| UW-10 | ● | ● | 3/8" | 4.5 | 1 5mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 70 | 100 | 48 | 1.01 |
| UW-15 | ● | ● | 1/2" | 4.5 | 1 5mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 70 | 100 | 48 | 1 |
| UW-20 | ● | ● | 3/4" | 8.6 | 20mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 73 | 107 | 48 | 1.14 |
| UW-25 | ● | ● | 1" | 24 | 25mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 100 | 112 | 48 | 1.7 |
| UW-35 | ● | ● | 1 1/4" | 12 | 35mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 125 | 113 | 48 | 2.32 |
| UW-40 | ● | ● | 1 1/2" | 28 | 40mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 125 | 118 | 48 | 2.53 |
| UW-50 | ● | ● | 2" | 48 | 50mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 167 | 125 | 48 | 4.32 |
PRODUCT D ESCRIPTION
1. UD series is direct-acting, conductive, and normally closed (NC) 2/2 way solenoid valve.
2. Able to be operated directly without pressure
3. Availability of fluid type: water, air, light oil, gas, vacuum
4. Acceptable for customization: Viton (130°C),Silicone (130°C) and EPDM (130°C)
CAUTIONS:
1. Before pipelining, the pipe line must be very clean without any contaminants or any other
things not ought to be existed.
2. To prolong the life time of the product, Y-line filter should be installed in the front end of
solenoid valve.
1. AC voltage tolerance:士10%; DC voltage tolerance:土1%
2. It should be installed horizontaly; vertical installation is not advisable.
Not Suitalbe For Fluid As Below:
1. Liquid status when it is high temperature; solid status when it is cool.
2. Corrosive fluid
3. Viscosity over 20cst
